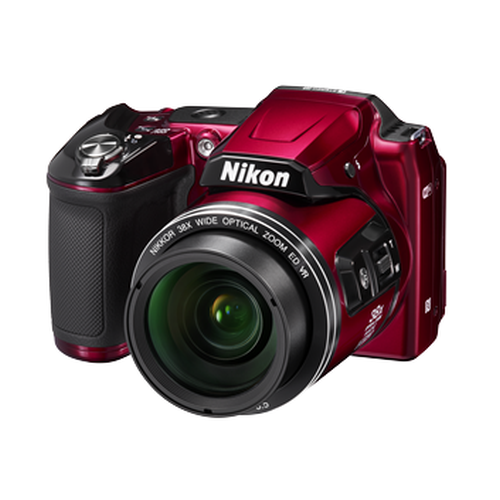

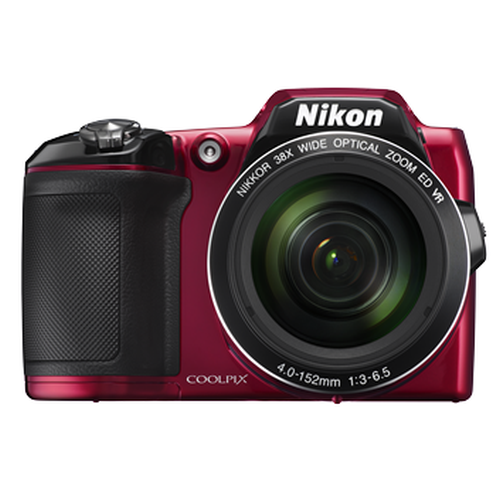

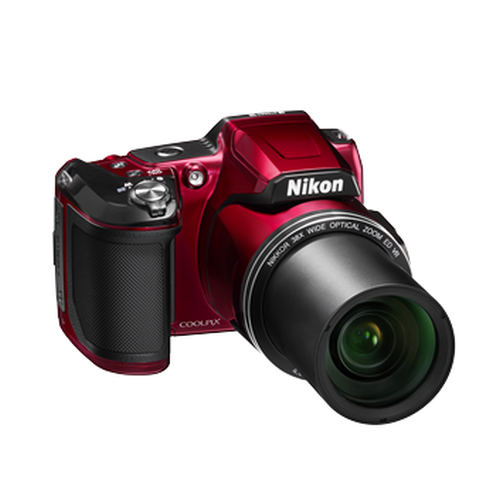

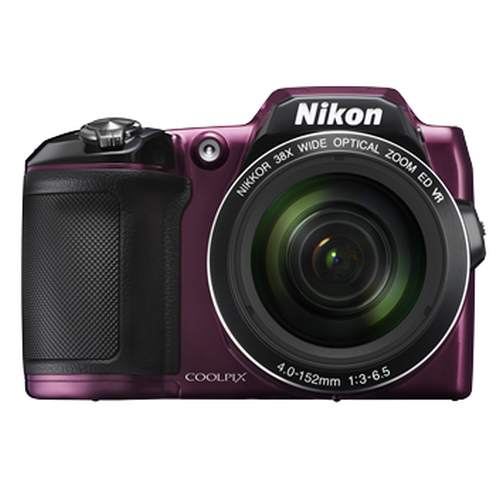

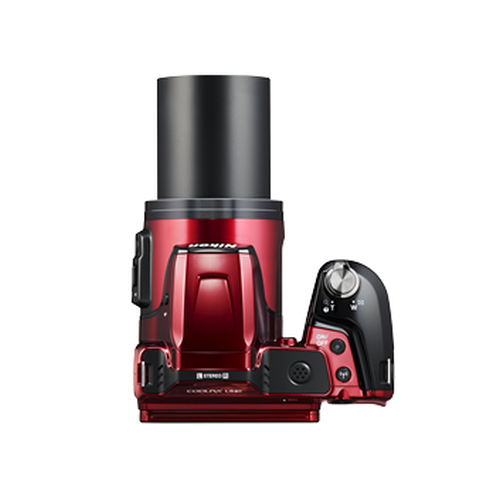

With its 38x optical zoom (22.5mm - 855mm equivalent in 35mm format), 76x Dynamic Fine zoom*2 (approximately 1710mm equivalent in 35mm format), the L840 perfectly seizes every moment, from far or up-close. Instantly recapture subjects that were out of frame by switching from telephoto zoom to wide-angle viewing with the new Snap-Back Zoom function. Equipped with a high-performance NIKKOR lens, EXPEED C2 image-processing system and 16.0-megapixel backside illumination CMOS sensor, the L840 achieves superior quality pictures even in low light situations. It also features the new moon and bird-watching scene modes that complement super-telephoto zooming.
With the Pre-autofocus (AF) function, you will no longer have to worry about missing those critical decisive shots. The L840 automatically achieves sharp focus even during close-ups or in dimly lit situations. Taking brilliant photos is easy with the L840 as the Target-Finding AF fixates on to the main subject automatically as you frame the picture, while the Scene Auto Selector assesses your surroundings to select the most appropriate scene mode.
Share your images easily with the built-in Wi-Fi® that enables instant connection with a touch of a button. You can also share photos by tapping your camera with an NFC-enabled*1 smart device. Simply download the free Wireless Mobile Utility App*3 on your iOS or Android device to transfer your images. When connected, you will also be able to see what your camera shoots through the smart device for fun selfies and interesting group photos.
Experience greater freedom when shooting with an approximately 921k-dot, 7.6cm(3") wide-viewing-angle TFT LCD tilting monitor for better flexibility in shooting angles. The monitor is also designed with anti-reflection coating, anti-fingerprint acrylic coating, brightness adjustment, and Clear Color Display that ensure you have a clear view of the monitor at all times.
Type
Compact digital camera
Effective pixels
16.0million, (Image processing may reduce the number of effective pixels.)
Image sensor
1.1cm(1/2.3")type, CMOS, Total pixels: approx.16.76million
Lens
NIKKOR lens with38x optical zoom
Focal length
4.0–, 152mm, (angle of view equivalent to that of 22.5–855 mm lens in 35mm [135] format)
Maximum aperture
f/3, –6.5
Construction
12elements in, 9groups, (3 ED lens elements)
Digital zoom magnification
Up to 4x (angle of view equivalent to that of approx. 3420 mm lens in 35mm [135] format)
Vibration reduction
Lens-shift VR (still images), Lens shift and electronic VR (movies)
Autofocus system
Contrast-detect AF
Focus range
[W]: Approx.30 cm (1 ft) to infinity, [T]: Approx.3.5 m (11 ft) to infinity, Macro mode: Approx.1 cm (0.4 ") to infinity (wide-angle position), (All distances measured from center of front surface of lens)
Focus-area selection
Face priority, manual with 99 focus areas, center, subject tracking, target finding AF
Monitor size
7.6cm(3") diagonal
Monitor resolution
Approx.921k-dot, wide viewing angle TFT LCD with anti-reflection coating and 5-level brightness adjustment, tiltable approx. 85° downward, approx. 90° upward
Frame coverage (shooting mode)
Approx. 99% horizontal and vertical (compared to actual picture)
Frame coverage (playback mode)
Approx. 99% horizontal and vertical (compared to actual picture)
Media
SD, SDHC, SDXC, Internal memory (approx. 20 MB)
File system
DCF and Exif 2.3 compliant
File formats
Still images: JPEG Movies: MOV (Video: H.264/MPEG-4 AVC, Audio: LPCM stereo)
Image size (pixels)
16M (High) [4608 x 3456 (Fine)] 16M [4608 x 3456] 8M [3264 x 2448] 4M [2272 x 1704] 2M [1600 x 1200] VGA [640 x 480] 16:9 [4608 x 2592] 1:1 [3456 x 3456]
ISO sensitivity (Standard output sensitivity)
ISO125, –1600, ISO 3200, 6400 (available when using Auto mode)
Metering method
Matrix, center-weighted (digital zoom less than 2x), spot (digital zoom 2x or more)
Exposure modes
Programmed auto exposure and exposure compensation (–2.0 – +2.0 EV in steps of 1/3 EV)
Shutter type
Mechanical and CMOS electronic shutter
Shutter speed
1/1500–, 1s, 1/4000 s (maximum speed during high-speed continuous shooting) 4 s (Fireworks show scene mode)
Self-timer
Can be selected from 10 s and 2 s
Type
Electronically-controlled ND filter (–2 AV) selection
Range
2 steps (f/3 and f/6 [W])
Built-in flash
Yes
Range (approx.) (ISO sensitivity: Auto)
[W]: 0.5–6.9 m (1 ft 8 "–22 ft) [T]: 3.5 m (11 ft)
Control
TTL auto flash with monitor preflashes
USB connector
Hi-Speed USB, Supports Direct Print (PictBridge) Audio/video output connector (NTSC or PAL can be selected)
HDMI output connector
HDMI micro connector (Type D)
DC input connector
For AC Adapter EH-67 (available separately)
Standards
IEEE 802.11b/g/n (standard wireless LAN protocol)
Operating frequency
2412–2462 MHz (1-11 channels)
Range (line of sight)
Approx. 10 m (10 yd)
Data rates (actual measured values)
IEEE 802.11b: 5 Mbps IEEE 802.11g: 20 Mbps IEEE 802.11n: 20 Mbps
Security
OPEN/WPA2
Access protocols
Infrastructure
Supported languages for camera menus
Arabic, Bengali, Bulgarian, Chinese (Simplified and Traditional), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hindi, Hungarian, Indonesian, Italian, Japanese, Korean, Marathi, Norwegian, Persian, Polish, Portuguese (European and Brazilian), Romanian, Russian, Serbian, Spanish, Swedish, Tamil, Telugu, Thai, Turkish, Ukrainian, Vietnamese
Power source
Four LR6/L40 (AA-size) alkaline batteries Four FR6/L91 (AA-size) lithium batteries Four EN-MH2 rechargeable Ni-MH batteries (available separately) AC Adapter EH-67 (available separately)
Battery life of still shooting
Approx. 590 shots when using alkaline batteries, Approx. 1240 shots when using lithium batteries, Approx. 740 shots when using EN-MH2 batteries {sup(*1)}
Battery life of movies (actual battery life for recording)
Approx. 1 h 35 min when using alkaline batteries, Approx. 4 h 30 min when using lithium batteries, Approx. 2 h 30 min when using EN-MH2 batteries {sup(*2)}
Tripod socket
1/4 (ISO 1222)
Dimensions (WxHxD)
Approx.113.5, x78.3, x96.0mm (4.5, x3.1, x3.8"), (excluding projections)
Weight
Approx.538g ( 1 lb 3.0 oz), (including batteries and memory card)
Temperature
0°C–40°C (32°F–104°F)
Humidity
85% or less (no condensation)
Supplied Accessories
LR6/L40 (AA-size) alkaline batteries (×4) {sup(*)}, Lens Cap LC-CP31 (with cord), USB Cable UC-E16, Camera Strap * The included batteries are for trial use only.
