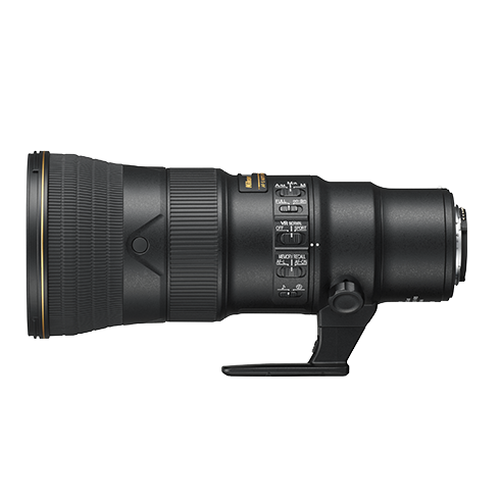

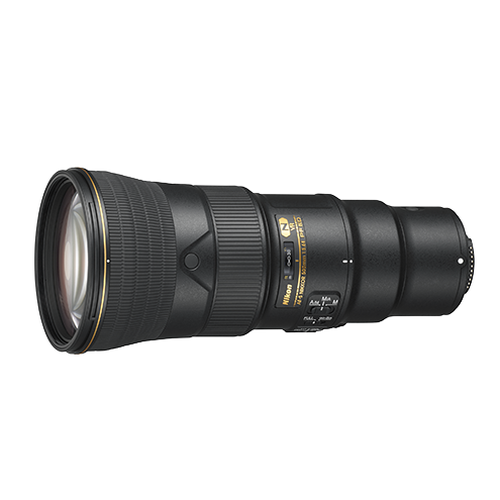

The AF-S NIKKOR 500mm f/5.6E PF ED VR employs the Phase Fresnel optical design which consists of a series of concentric circles engraved on it, with these circles each focusing a different spectrum and direction of light. This minimises the number of lens elements needed and results in a substantially lighter, more compact lens with outstanding optical performance and minimal chromatic aberration – excellent for capturing all the action. Weighing approximately 1,460g and at a length of 237mm, the AF-S NIKKOR 500mm f/5.6E PF ED VR brings you true agility.
The AF-S NIKKOR 500mm f/5.6E PF ED VR is constructed to provide high-resolution, high-contrast images with innovations like the ED glass that provide results in stunning sharpness and contrast by further minimising chromatic aberration. This works in conjunction with Nano Crystal Coat, which features nano-sized crystal particles that effectively reduces flares and ghosting, giving you an extra edge of reliability. Engineered with the harshest of shooting environments in mind, a fluorine coat is also applied to effectively repel dust, water droplets, grease and dirt, and provides a superb anti-reflection effect, ensuring the capture of crisp and clear images.
In the lighter lens group, the AF-S NIKKOR 500mm f/5.6E PF ED VR incorporates an electromagnetic diaphragm mechanism and a Silent Wave Motor to allow you to track fast-moving subjects going at unpredictable speeds. With sharp and uncompromising AF precision, you will never miss your moment. To further minimise unintentional image blur, the AF-S NIKKOR 500mm f/5.6E PF ED VR features an upgraded Vibration Reduction (VR) system that provides an effect equivalent to a shutter speed of 4.0 stops1 faster in NORMAL mode. The state-of-the-art VR SPORT mode is also incorporated to provide improved viewfinder stability when capturing all the fast-paced action.
With all the latest NIKKOR technology, the AF-S NIKKOR 500mm f/5.6E PF ED VR is not only lighter, but is also designed to let you photograph all the action while you’re on-the-go, even when you don’t have a tripod or monopod. Engineered to capture all the finer details, it will soon become your new companion on all your photographic adventures
Type
F mount Type E AF-S lens with built-in CPU
Format
FX/35mm
Focal length
500 mm
Maximum aperture
f/ 5.6
Minimum aperture
f/ 32
Lens construction
19 elements in 11 groups (including 3 ED lens elements, 1 PF (phase Fresnel) lens element, lens elements with Nano-Crystal coatings, and a fluorine-coated front lens element)
Angle of view
Nikon FX-format D-SLR cameras: 5° Nikon DX-format D-SLR cameras: 3° 10‘
Minimum focus distance
3.0 m ( 9.8 ft) from focal plane
VR (Vibration Reduction) image stabilization
Yes
No. of diaphragm blades
9 ( rounded diaphragm opening )
Coating
Nano Crystal Coat, Fluorine coat
Diaphragm
Automatic electronic aperture control
Filter-attachment size
95 mm (P = 1.0 mm)
Dimensions
Approx. 106 mm maximum diameter x 237mm (distance from camera lens mount flange)
Weight
Approx. 1460 g ( 3 lb 3.5 oz)
Autofocus
Yes
AF-S (Silent Wave Motor)
Yes
Internal focusing
Yes
Focusing
Manual, Manual/Auto, Auto/Manual Nikon Internal Focusing (IF) System with autofocus controlled by Silent Wave Motor and separate focus ring for manual focus
Focus limit switch
Two positions: FULL (∞ to 3.0 m) and ∞ to 8 m
Focus distance indicator
3.0 m to ∞
Supplied accessories
LC-95 95 mm Snap-on Front Lens Cap, LF-4 Rear Lens Cap, HB-84 Bayonet Hood, CL-M5 Lens Case
